pixels-prof

Pixel-Prof is a Godot 4.5+ EditorPlugin that keeps your entire pixel art workflow inside the engine.

Draw sprites, build animations, and use the Correspondence Engine (CE) to map palette colours to exported JSON game data — live, as you paint.

No round trip to Aseprite. No import pipeline. No alt-tab.

  ---

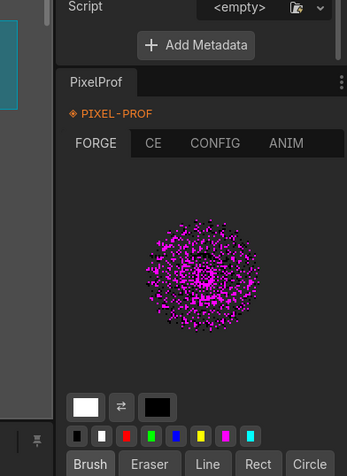

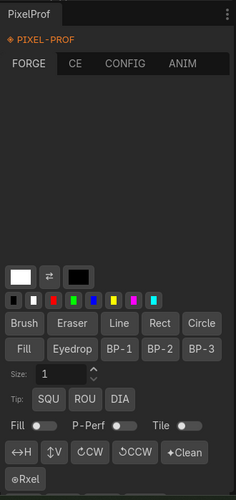

  FORGE — Pixel Art Editor

  - Integer-only drawing engine (Bresenham line, flood fill, brush, erase)

  - Direct PackedByteArray manipulation — no set_pixel(), no float ops

  - Configurable canvas size (default 64×128px)

  - 8 palette slots per session

  ANIM — Animation Tab

  - Multi-clip animation editor with per-frame timing

  - Onion skin overlay

  - Direct export to Godot's SpriteFrames resource

  - AnimationPlayer-ready output

  CE — Correspondence Engine

  - Map palette colours to named game stats

  - Live pixel coverage calculation

  - JSON export with _ce_meta block (pixel counts, canvas size, totals)

  - 15 determinism-verified unit tests included

  ---

  Install: Drop the addons/ folder into your Godot project root and enable the plugin in Project Settings.

  Free and open source. MIT licensed.

  https://github.com/architect-minder/godot-pixel-prof

  ---

  Tags:

  godot godot-plugin pixel-art sprite-editor animation game-dev-tools gdscript 2d tileset indie
