Note, this question was originally posted by me on stackoverflow

Matplotlib Version = 1.5.1
Installation method = anaconda

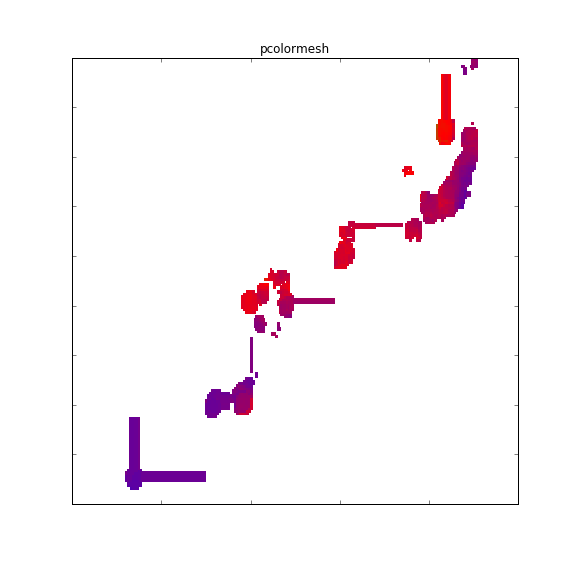

I'm plotting data using the matplotlib functions pcolormesh and imshow and when I use pcolormesh it produces artifacts where it seems to slide some of the data around:

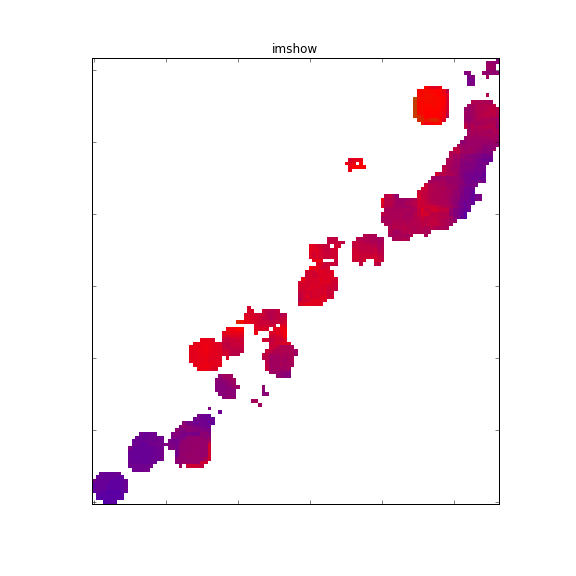

whereas imshow does not:

I was able to produce an example that has the same artifacting

import numpy as np
import pandas as pd

data = pd.DataFrame({'x':np.random.normal(loc=0.5, size=5000)
                     , 'y':np.random.normal(loc=0.5, size=5000)
                     , 'z':np.random.normal(loc=0.5, size=5000)})

data_pivot = data.pivot(index='x', columns='y', values='z')
x = data_pivot.index.values
y = data_pivot.columns.values
z = data_pivot.values
masked_data = np.ma.masked_invalid(z)

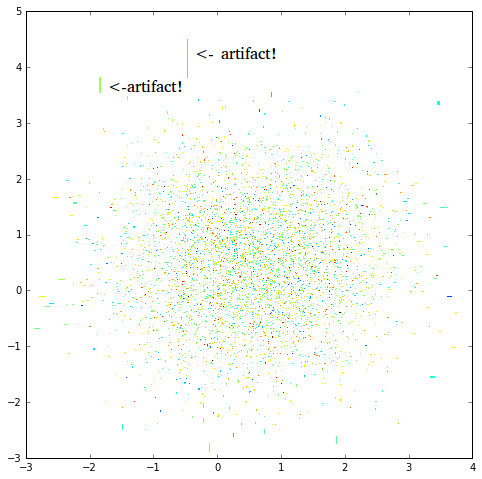

which produces the following figures like so:

fig, ax = plt.subplots(1, figsize=(8,8))
ax.pcolormesh(x, y, masked_data)

Where do these artifacts come from? There isn't anything wrong with the data as far as I can tell since the original data and the made up data produce the same result.
