PMSG (Prototype Modular Smart Glasses ) is an open-source DIY project to transform ordinary glasses or goggles into customizable smart glasses.
Replace the temples (arms) with custom PCBs featuring hinge cutouts. Mount a tiny microcontroller and add modular sensors/connectors. Affordable, hackable, and ideal for wearables experiments like notifications, head tracking, monitoring, or basic AR.
- Custom PCB (order from repo files via JLCPCB/Seeed Fusion)
- Glasses frame (old pair with standard hinges)
- Microcontroller:
- Primary: Seeed Studio XIAO ESP32C6 (WiFi 6, BLE, Zigbee/Thread support for advanced mesh/IoT)
- LoRa variants: XIAO with nRF (e.g., RA-02 LoRa module) or ESP32-LoRa boards
- Alternatives: XIAO RP2040, Adafruit QT Py, or other XIAO-compatible boards
- Small LiPo battery + charging module
- Optional sensors: IMU, mic, camera, OLED (via Grove connectors)

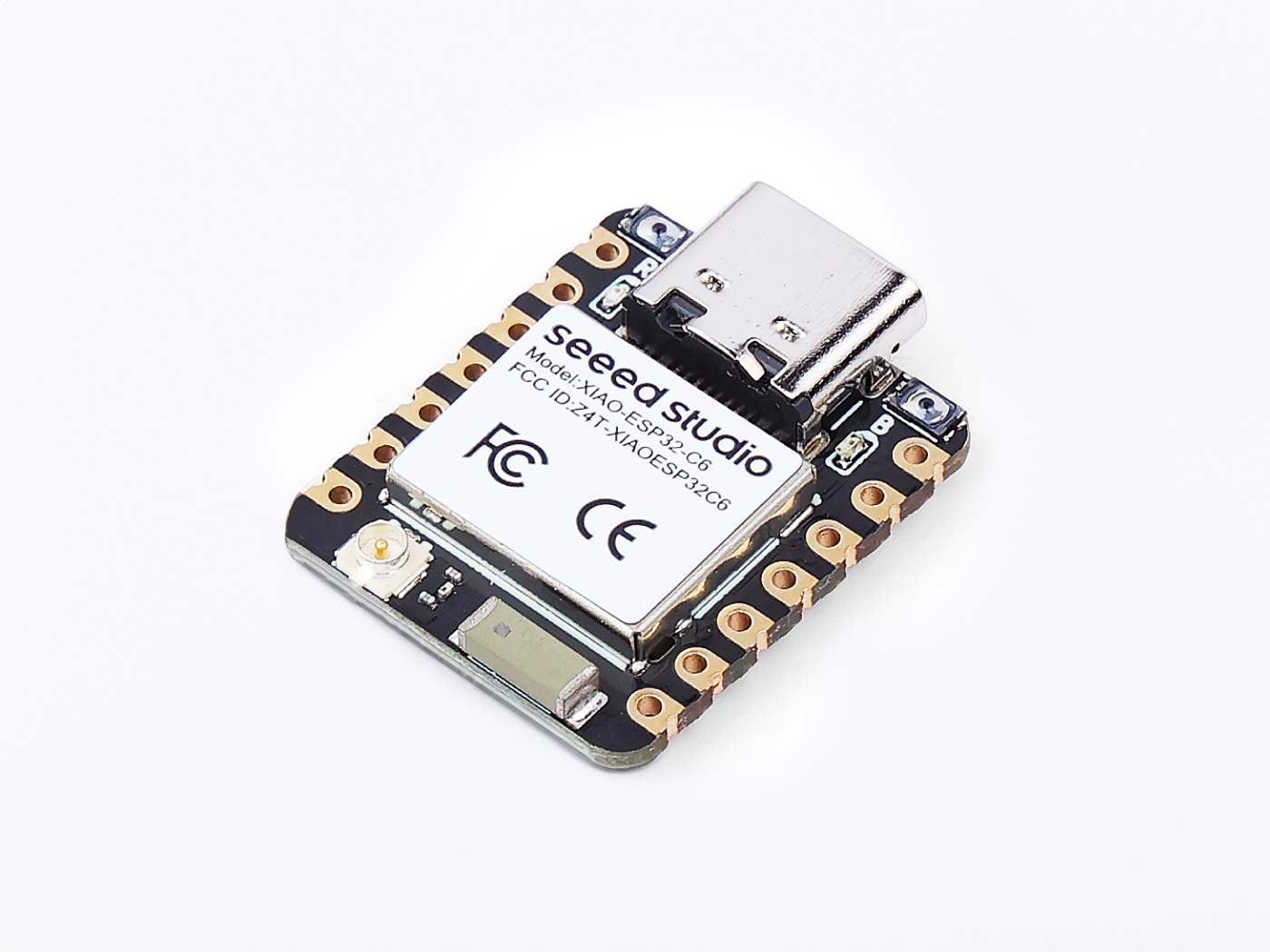

Seeed Studio XIAO ESP32C6 - Recommended for WiFi/BLE/Zigbee
This section covers the default peripherals and quick-start features on PMSG Prototype Modular Smart Glasses V4 and higher. These are designed to get you up and running fast with vibration feedback, RGB animations, sensors, and input testing.
| Function | Pin / Address | Description | Library / Notes |
|---|---|---|---|
| Vibration Motor | D10 (GPIO10) | Feedback motor (haptic buzz / PWM tunes) | Use pmsg2vibrate.h (included) or direct PWM |
| 4x WS2812C-2020-V1 RGB LEDs | D1 (GPIO1) | Programmable pixel display for animations | FastLED.h or Adafruit_NeoPixel.h → pmsg4pixeldisplay.h (animations lib) |
| SHT31 (Temp + Humidity) | I²C 0x44 | Sensirion temperature & humidity sensor | On PCB |
| SGP41 (VOC + NOx / CO2 index) | I²C 0x3? (usually 0x59) | Sensirion air quality sensor | Not on all PCBs |
| VEML7700 | I²C 0x10 | Ambient light (lux) sensor | pmsg.h helper |
| LTR390 | I²C 0x53 | UV light sensor | |
| LIS2DH12 | I²C 0x19 | Accelerometer / movement | LIS2DH12.h |
| Battery Level | A0 (ADC) | Battery voltage → % power | Read ADC |
| Vibration/Touch Input Test | A2 (ADC) | Capacitive touch/vibration sense test | |
| Touch Input (ESP32-S3 only) | D3 | Dedicated touch pin | |
| IR Transmitter | D8 | IR remote protocol (TV, airco, etc.) | IRremote.h |
| Push Button | D9 (GP1) | Onboard pushbutton for quick testing |
Many demos use D9 as a general-purpose input for quick hardware checks.
pmsg2vibrate.h– Easy control of the vibration motor (buzz, patterns, tones via PWM)pmsg4pixeldisplay.h– Fun animations for the 4 WS2812 LEDs (rainbow, alerts, etc.)pmsgi2csensors.h– Helpers for cool sensors like SHT, LUX, UV, Movement and more
- add USB C to PMSG board
- Mount your chosen MCU (e.g., XIAO ESP32C6 ).
- Attach to glasses
- Connect battery.
- Program via Arduino IDE.
- Add ESP32 board package (by Espressif).
- Select board: "XIAO_ESP32C6".
- Use USB-C for upload.
These simple sketches verify your V4+ setup post-assembly.
( make sure you IDE has right boards of Xiao installed see how bellow )
https://raw.githubusercontent.com/espressif/arduino-esp32/gh-pages/package_esp32_index.json
// Quick Test 1: Blink LED + Serial
#define LED_PIN LED_BUILTIN
void setup() {
pinMode(LED_PIN, OUTPUT);
Serial.begin(115200);
Serial.println("PMSG V4+ with ESP32C6 Booted!");
}
void loop() {
digitalWrite(LED_PIN, HIGH);
Serial.println("LED ON");
delay(1000);
digitalWrite(LED_PIN, LOW);
Serial.println("LED OFF");
delay(1000);
}
